European Standard Stable Metal Fiber Laser Cutting Machine Automobile
Penta high power fiber laser cutting machine is international leader and domestic initiator. The machine body's thermal processing technology, which can ensure the stability and precision.
Unique cutting database, which can realize fast piercing, high speed and thick plate cutting. For example, the cutting of stainless steel, and aluminum plates' thickness can reach 30mm.
Assemble with new version of Smart Manager 4.0 CNC software, which optimize various of piercing mode, adopt new generation of frog jump management, and move fluently without any pauses; thin materials' productivity promoted more than 25%.
Bolt is Penta's high end series for customers that demands extremely high performance and efficiency.
Technical Specification

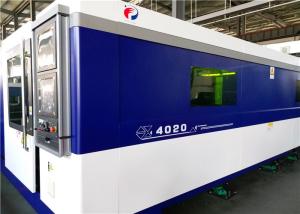

| Model | BOLT 4020 |
| Rate output power | 2000 W |
| Rapid Speed | 200 m/min |
| Maximum Acceleration | 4.0 G |
| Accuracy | ±0.03 mm/m |
| Mechanical Repeatability | ±0.01 mm/m |
| Maximum cutting thickness of mild steel | 16 mm |
| Maximum cutting thickness of stainless steel | 8 mm |
| Working Table | 4000 mm ×2000 mm |
Advantages
Stable Mainframe
The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
suction system,dross cleaner, enclosure and so on.
Efficient Control System
New Z32 real time CNC system, with dynamic and geometric JERK control. The date exchange between CNC system and machine drive system is adopted with fiber and power modulation for the ultimate cutting quality in the corners
Imported Operating System Smart Manager
Smart Manager is originally imported from Europe. This software is based on the Windows
XP system and can fully interface with Italy CNC system which original imported. Therefore the real control of the machine, the laser source and software update is more convenient and fast.
Imported nesting software function
Based on AUTO CAD/CAM automatic program nesting software and easy to use, Multilayer nesting function to intensively increase the sheet usage rate
Pre-perforation System
Accomplish the pre-perforation as settled
Features
- IPG or Trudisk laser source from 1kw to 12kw at your choice
- Double servo motor driven synchronously, bring higher speed and acceleration
- Double driving synchonous technology make sure high speed and precision cutting
- Auto Focus Cutting Head dedicated for high power (Precitec)
- Dedicated laser CNC that makes the best and most of the laser
- Fast pallet exchanger and full enclosure
- Handy embedded cutting database

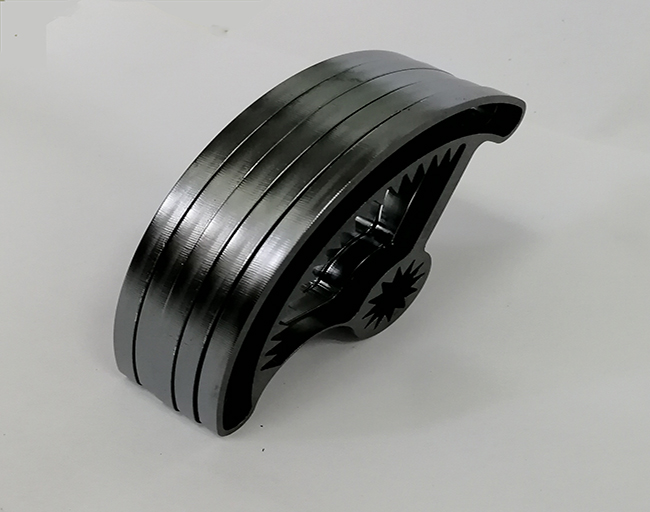

Samples
