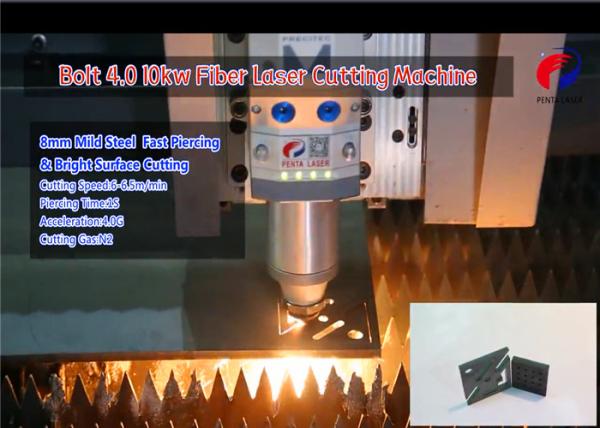

First High Power Fast-Response Service Oil Drilling Mild Steel Fiber Laser Cutting Machine
PENTA LASER BOLT Series equipped with smart cutting head original imported form Europe,it is Penta's high end series for customers that demands extremely high performance and efficiency. The stat-of-the-art laser cutting machine designed for both thin and thick metal.
Features
- IPG or Trudisk laser source from 1kw to 12kw at your choice
- Double driving synchonous technology make sure high speed and precision cutting
- Auto Focus Cutting Head dedicated for high power (Precitec)
- Double servo motor driven synchronously, bring higher speed and acceleration
- Dedicated laser CNC that makes the best and most of the laser
- Fast pallet exchanger and full enclosure
- Handy embedded cutting database
Technical Specification
| Model | BOLT 4020 |
| Rate output power | 10000 W |
| Rapid Speed | 200 m/min |
| Maximum Acceleration | 4.0 G |
| Accuracy | ±0.03 mm/m |
| Mechanical Repeatability | ±0.01 mm/m |
| Maximum cutting thickness of mild steel | 25 mm |
| Maximum cutting thickness of stainless steel | 30 mm |
| Working Table | 4000 mm ×2000 mm |
Advantages
The machine body's thermal processing technology, which can ensure the stability and precision
High power specialized cutting head, which can support durable and stable cutting
Unique cutting database for fast piercing, high speed cutting and thick plate cutting, cutting capacity for stainless steel and aluminum is up to 30mm
Equipped with new version of Smart Manager 4.0 CNC software, which optimize various of piercing mode,adopt new generation of frog jump management, and move fluently without any pauses; Thin materials' productivity promoted more than 25%.
